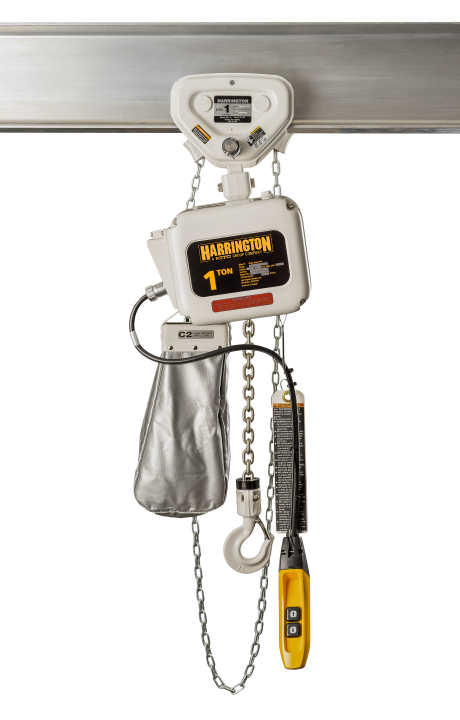

NERG-FG Food Grade Electric Trolley Hoist

Gear Up for Food Grade

Harrington’s NERG-FG food grade electric hoist and geared trolley combination is a great option for lifting and moving in food processing or food packaging applications.

Fits Tapered or Flat-Flanged Beams

PT-FG trolley wheels are adjustable to work with both tapered and flat-flanged beams allowing you to use existing equipment without customization. Lifetime-lubricated ball bearings also increase reliability and provide you with smooth operation while traversing a load.

Low Minimum Turn Radius

For curved beams where tight turns are required, Harrington’s PT-FG trolleys allow a low minimum turn radius.

FDA Approved Food-Safe Oil, Grease and Lubricants

Pharmaceutical, beverage, and food-associated processing plants require equipment that uses non-toxic lubrication. Our NER-FG hoist uses FDA approved grease and oil on the load chain and in the gearbox.

Stamped Steel Side Plates

Engineered to be light and easy to install GT-FG trolleys are specifically designed to be robust and durable, without unnecessary weight and bulkiness.

White Epoxy Paint

Specifically used for Harrington's food grade trolley, this paint produces a hard, chemical and solvent resistant finish - ensuring resistance to acids/alkali and water that may be present in food environments.

Food Grade Hoist

Harrington's N/ER Food Grade hoists are perfect for any facility where incidental contact with product is a concern.

CAPACITY
  • 1/4 - 2 Ton
VOLTAGE
  • 208-230/460-3-60
COMPLIANCE
  • ANSI/NFPA 70, “National Electrical Code”
  • ANSI/ASME B30.16, “Safety Standard—Overhead Hoists (Underhung)”
  • ANSI/ASME HST—1M, “Performance Standard for Electric Chain Hoists”
  • OSHA Section 1910.179 of Title 29, “Occupational Safety and Health Regulations—Overhead and Gantry Cranes”
  • ANSI/ASME B30.11, “Safety Standard—Monorails and Underhung Cranes”
  • ANSI/ASME B30.17, “Safety Standard—Overhead and Gantry Cranes (Top Running Bridge, Single Girder, Underhung Hoist)”
CLASSIFICATION
  • ISO M5 or M4
  • FEM 2m or 1Am
STANDARD FOOD GRADE FEATURES
  • Food grade oil and grease
  • White epoxy paint
  • Nickel-plated load chain
  • Lubricants comply with FDA standards
  • Features stainless steel and nickel-plated components
BODY
  • Die cast aluminum
  • Completely sealed suitable for both indoor and outdoor applications, including harsh environments
  • Gaskets throughout the hoist provide for an IP55 rating
LOAD CHAIN
  • Grade 80
  • High-performance nickel-plated load chain
  • FDA approved oil
HOOKS
  • Forged carbon steel hooks will open gradually and not fracture under excessive loads
  • Ball bearings produce smooth rotation
  • Bottom hook will swivel 360 degrees
  • Top and bottom hooks have heavy-duty hook latch
CONTROLS
  • Pendant
  • 110 volts
  • Simple to operate plug-in connectors
PUSH BUTTON PENDANT
  • Rated IP65
  • Standard control voltage is 110V
  • Strain relief wire is molded to pendant cord for added support and dependability
  • Single speed: 2-button (momentary contacts)
  • Dual speed: 2-button (momentary contacts) with emergency On/Off (maintained contacts)
  • E-stop is standard on all 2-button dual speed pendants
BRAKE
  • “The Guardian”: Smart Brake Technology
  • Revolutionary DC current motor brake with electrical failsafe design
  • 10 year warranty
MOTOR
  • Totally enclosed fan-cooled (TEFC)
  • Motor fin, fan blade and fan cover design cools the motor and brake
OPERATING CONDITIONS
  • Recommended for -4° to +104° F and humidity of 85% or less
TROLLEY FEATURES
  • Drop Stops
  • Shafts fit wide flange range and have spacers for easy adjustments
  • All steel wheels have sealed ball bearings and will fit a flat or tapered beam flange
  • White epoxy paint
FOOD GRADE OPTIONS
  • Stainless steel bottom hook
  • Stainless steel or plastic chain container
  • NEMA 4 pendant
  • Pendant cover
  • Stainless steel chain spring and limiting plate
  • Stainless steel cushion rubber
  • Nickel-plated stopper
  • Stainless steel trolley wheels
  • Nickel-plated suspension shaft and suspender
OPTIONS
  • Longer shafts for wider beams
  • Bumpers
  • Longer lift or pendant lengths
