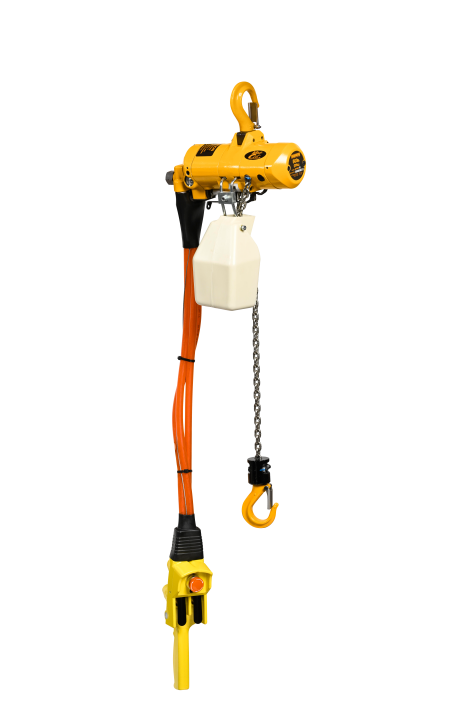

AH Mini Cat Air Hoist

No Lightweight in Performance

Harrington's AH Mini Cat air chain hoists offer an extremely lightweight, small body design suitable for on-site jobs, workstations and assembly line applications. Don't be fooled by its small size - the Mini Cat is no lightweight in performance, only in dimensions.

Extremely Compact Hoist Body

Installing and moving this little hoist is a breeze with its light weight and super small size.

UNLIMITED DUTY CYCLE

With its unlimited duty cycle, you can continually operate the hoist without worrying about damage from too many starts per hour.

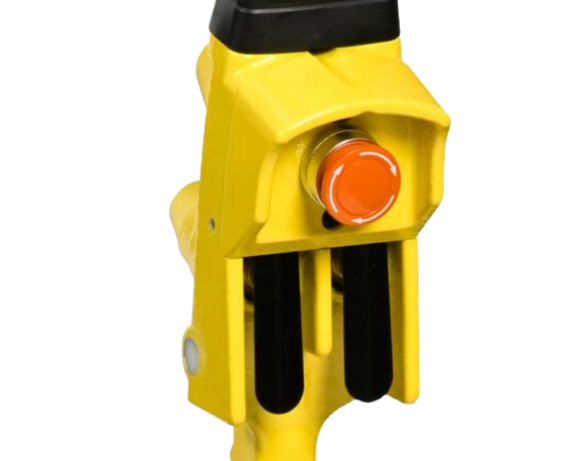

Flexible controls to fit any application

These little hoists are available in pendant or cord control to fit any of your lifting preferences.

VANE MOTOR DESIGN

The spring-loaded, multi-vane motor design lets you place and position a load exactly where you need it. Gradually control the lift with very fine feathering movements both up or down.

Nickel Plated Load Chain

Resistant to corrosion, abrasion and wear.

CAPACITY
  • 250 - 500 lb
BODY
  • Lightweight body allows for easy transportation
  • Airtight hoist for efficient use of air
LOAD CHAIN
  • Ultra-strong high performance nickel-plated load chain
  • Resistant to corrosion, abrasion and wear
AIR REQUIREMENTS
  • Air Supply: 19 – 34 cfm at 60 – 90 psi
  • Air Lubrication: Minimum 10 to 15 drops of oil per minute (0.2 – 0.3 cc/min.)
  • Air Filtration: Maximum 5 micron air filter or finer required
  • Air Inlet Port: 3/8" NPT
  • Air Supply Hose Minimum Size: 3/8"
OPERATION
  • Pendant or cord control
  • Extremely fast lifting for applications where speed is critical
  • Comfortable noise levels during use
BRAKE
  • Disc motor brake system for reliable load support
MOTOR
  • Spring-loaded multi-vane motor
OPERATING CONDITIONS
  • Temperature Range +14° – 140°F
OPTIONS
  • ET mini trolley
  • Pendant or cord control
  • Plastic chain container
