HBXSB - Box Spreader Beam

We Stand Ahead In Quality

The HBXSB style of spreader beam is designed to lift large bulky loads and can be rigged to handle objects with an offset center of gravity.

FEATURES
  • Designed to meet your specific lifting requirements and can be manufactured in a welded or bolt together design

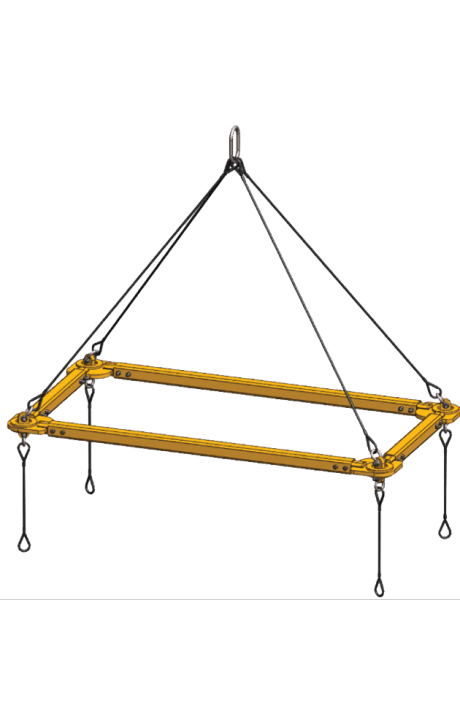

  • Product shown is a bolt together style with special corner assemblies whereby the shackle lugs can rotate into position in order to prevent side loading
  • If adjustability is required, this style of box spreader beam can be designed with telescopic lengths and/or widths to accommodate various load sizes
  • This spreader beam should be utilized where headroom is not limited
  • This style of lifter is utilized with upper rigging spread between four lift points that adds extra stability to the lift
  • Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2
  • 100% of all Harrington Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at no additional charge
OPTIONS
  • Swivel hooks
  • Shackles
  • Other special lifting attachments
  • Chain top rigging
  • Wire rope top rigging
  • Chain slings
