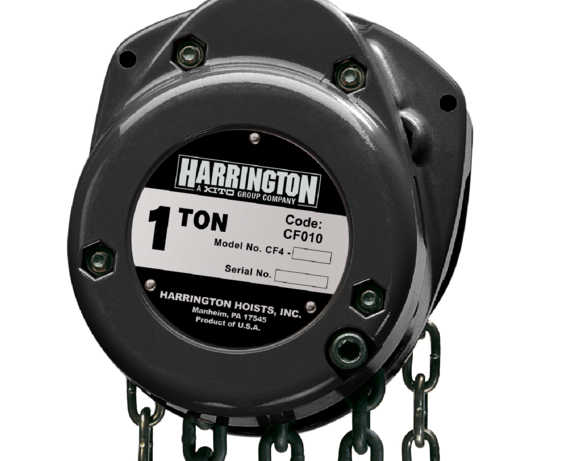

CF Entertainment Hand Chain Hoist

Making Stage Set Up Easy

Harrington's CF hoist exemplifies simplicity in design while making zero compromises on performance. Its die-cast aluminum body reduces the hoist weight and won’t corrode when exposed to the elements. Pre-lubricated ball bearings, precision machined gears, and Weston-style load brake make lifting smooth and easy while  allowing long service and low maintenance.

Lightweight Die-Cast Aluminum Housing

The CF hand chain hoist offers a rugged die-cast aluminum body which provides exceptional strength and durability.

Reliable Weston-Style Load Brake

The Weston-Style Load Brake is one of the most important inventions in the hoisting industry. With two moisture-resistant brake pads and four braking surfaces, the CF gives you positive stopping action.

FEWER PARTS MEANS SIMPLER MAINTENANCE

Engineered with fewer parts for simplified maintenance, the CF hand chain hoist makes it easy for you to inspect and clean, and keep on lifting.

Smooth Running Pre-Lubricated Bearings

Manual effort is minimized thanks to the CF’s smooth running, pre-lubricated ball bearings. Get a longer-lasting, smoother operating hoist with precision-machined drive train components that make lifting easy.

CAPACITY
  • ½ - 5 Ton
COMPLIANCE
  • ANSI/ASME B30.16, “Safety Standard—Overhead Hoists (Underhung)”
  • ANSI/ASME HST—2M, “Performance Standard for Hand Chain Manually Operated Chain Hoists”
BODY
  • Exceptionally strong thick die-cast aluminum body
  • Compact, lightweight and portable
LOAD CHAIN
  • Grade 100 heat-treated manganese alloy
  • Resists abrasion and wear
  • Standard Lift: 10'
HOOKS
  • Forged and heat-treated alloy steel hooks are designed to open slowly, without fracturing under excessive loads
  • Heavy-duty hook latch
OPERATION
  • Hand chain operated
  • Low hand-pull force for easy operation
BEARINGS
  • Smooth running, pre-lubricated ball bearings, and precision-machined drive train components
BRAKE
  • Weston-style load brake incorporating two moisture-resistant brake pads with four braking surfaces
OPTIONS
  • Chain container
  • Nickel-plated chain for corrosive environments
  • Inspection hooks
  • Lift and hand chain lengths can be customized to suit requirements
