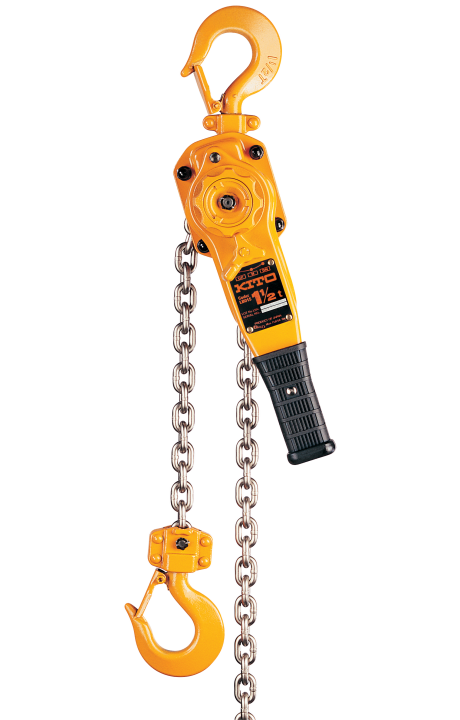

LB Entertainment Lever Hoists

A Lightweight Hoist That’s Anything but a Lightweight

The LB Series lever hoists from the KITO Entertainment Group offers a low headroom, compact design that is perfect for use in tight quarters. This hoist also comes in a black finish to reduce reflection from stage lighting.

CAPACITY
  • 3/4 - 9 Ton
COMPLIANCE
  • ANSI/ASME B30.21, “Safety Standard—Manually Lever Operated Hoists.”
  • ANSI/ASME HST—3M, “Performance Standard for Manually Lever Operated Chain Hoists.”
BODY
  • Rugged, high-impact, all-steel construction weighs less than comparable aluminum models
  • Compact and lightweight
  • Open design for easy inspection and cleaning without dismantling the unit
HOOKS
  • Forged, heat-treated alloy steel hooks open gradually without fracturing under excessive load
  • Top and bottom hooks have heavy-duty hook latch
  • Top and bottom hooks rotate 360 degrees
OPERATION
  • Rubber grip handle for non-slip operation
  • Operate in close quarters with short handle and 15-degree recovery stroke
  • Patented spring-loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
GEARS
  • Highly durable, split-load double reduction gears
  • Induction heat-treated and case-hardened
  • Enclosed to protect from dust and moisture
LOAD CHAIN
  • Nickel-plated for corrosion resistance
  • Grade 100 heat-treated
  • Standard lift: 5', 10', 15' or 20'
BRAKE
  • Weston-style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
  • The totally enclosed brake mechanism protects from dirt and moisture
OPTIONS
  • Slip clutch to prevent the hoist from being used to lift damaging loads beyond rated capacity
  • Top hook extender to locate the hoist body away from its attachment point
  • Load limit warning handle to alert the operator when the hoist is being used to lift damaging loads beyond rated capacity
  • Shipyard / Point hooks accommodate point loading
  • Bullard® and Shur-Loc® hooks provide a locking latch feature
  • Inspection hooks allow for inspection of the internal parts of the hook set
  • Custom lift lengths to suit requirements
