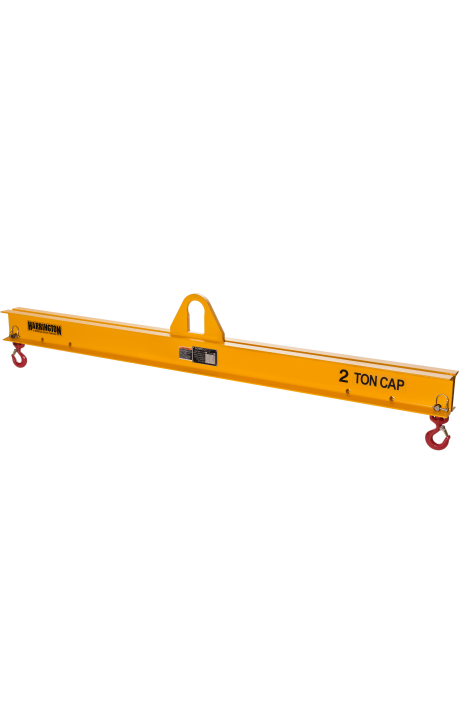

HSDLB - Standard Duty Lifting Beam - Channel Design

Engineering At It's Best

The HSDLB Standard Duty Lifting Beam Channel Design features a low headroom design that incorporates a machined bail to ensure a better connection to the saddle of the hook.

FEATURES
  • This style of lifting beam can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3' and 4' beams have two standard spreads)
  • Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1'), inside lift point (middle less 1')
  • Engineered and manufactured to ASME B30.20 and BTH-1 Design Category B Service Class 2
  • 100% of all Harrington Lifting Beams are Proof-Tested to 125% capacity and certificates supplied at no additional charge
OPTIONS
  • Additional lift points
  • Higher capacities
  • Additional lengths
  • Low headroom bail
  • Additional hooks
  • Shackle lugs
  • Faspins
  • Integrated beam stands
